Physical and logical-addressing
In a network users identify devices with logical addressing.
The address given to the host or device is mostly human-readable.
Networks map logical addresses to physical addresses.

How do devices get their address ?

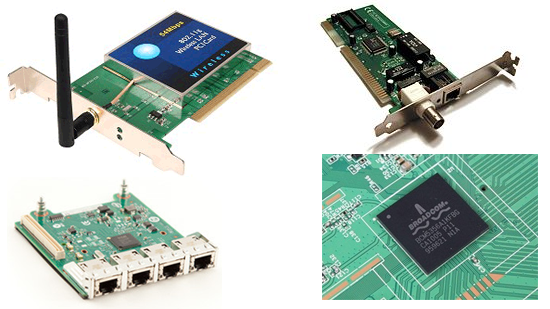

Every device uses a Network Interface card to communicate with a network.

MAC address
The NIC has a 48 bit unique Number called MAC (Media Access Control) address.

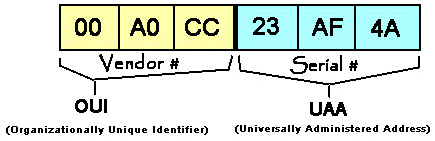

In a network card Physical address is the 48-bit M(AC address encoded by NIC manufacturer.  Ex. 00:AO:CC:23:AF:4A in (hex notation)


IPV4 Addressing
When the computer get connected to a network, it's a physical address (MAC address)
mapped to a 32-bit logical address like 192.168.1.100

• If the device is connected to a local network, the address assigned is a local IP.Ex. 192.168.1.100


• If the computer is connected to the internet, a  global IP is assigned.


• If the computer is connected to the internet through a proxy, the IP is a  local address.

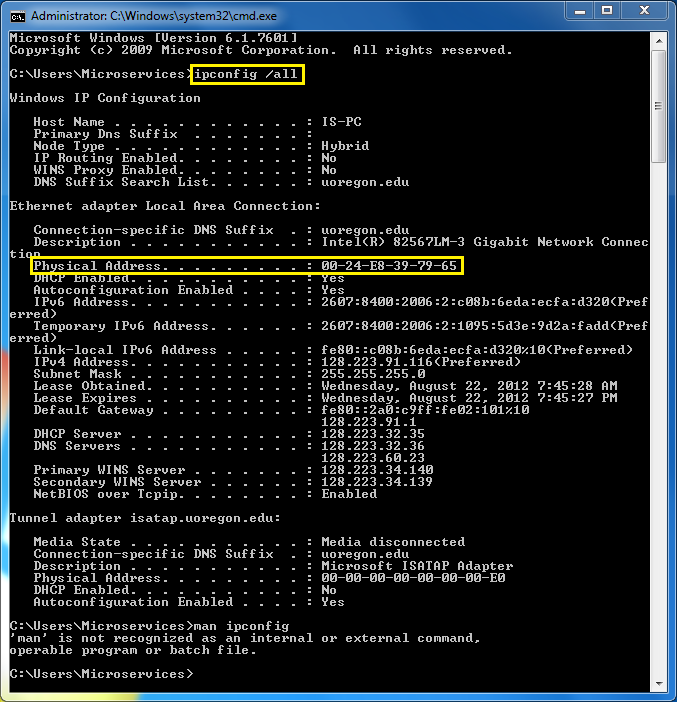

In the Command Prompt, execute the command "ipconfig /all"
This will print all information about the IP Configuration, including the Physical Address (MAC Address) of your NIC..
