AND Gate & Truth Table

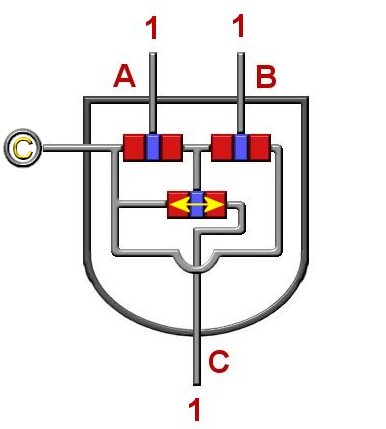

AND gate consists of three transistors.
It outputs 1 only when both inputs A & B are 1

The transistor is "on" initially.
When upper transister switched "on", they send a signal to the lower transistor to switch the lower transistor "off"

The Truth Table for AND gate


In this only when A & B are 1 outputs 1

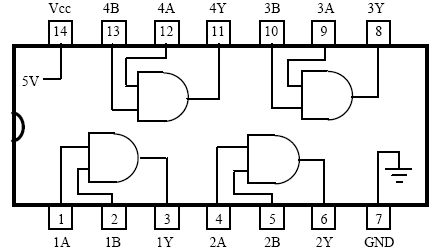

IC 7408 use AND gates
